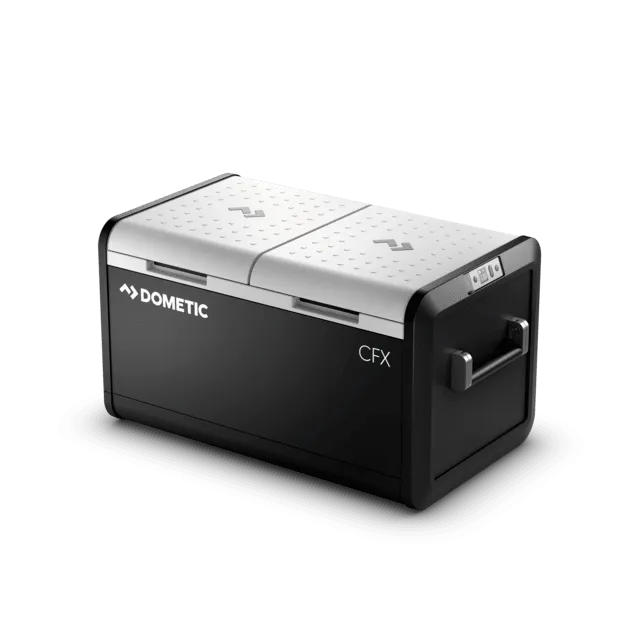

This ultimate powered cooler produces impressive cooling/freezing, allowing you to bring more of the food and drinks you love wherever you go. The CFX3's robust design and ExoFrame construction is built for tough outdoor use. Enjoy efficient cooling and freezing with convenience thanks to a mobile app which puts the control of your Dometic CFX3 at your fingertips. Go further, stay longer, and experience more.
Product Highlights
Rugged construction
Fender frames protect the unit from damage
Convenient CFX3 App
Temperature control and performance monitoring via CFX3 App
Easy to carry
Strong aluminum alloy carry handles
Dual zone cooling
Dual compartments with independent temperature control
User-friendly interface
Weatherproof high-resolution user interface displays operating status
Flexible power options
Powered by AC (110–240), DC (12/24 V) and DC solar power
Features
Generous storage capacity of 75 l to fit 113 cans
Heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminum alloy handles
Powerful VMSO3 compressor cooling technology efficiently refrigerates and deep-freezes to –7 °F
Easy-to-read High-Resolution Color Display and soft touch buttons enabling seamless control and monitoring of cooler performance
CFX3 App allows temperature control via WiFi or Bluetooth and provides performance history
3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries

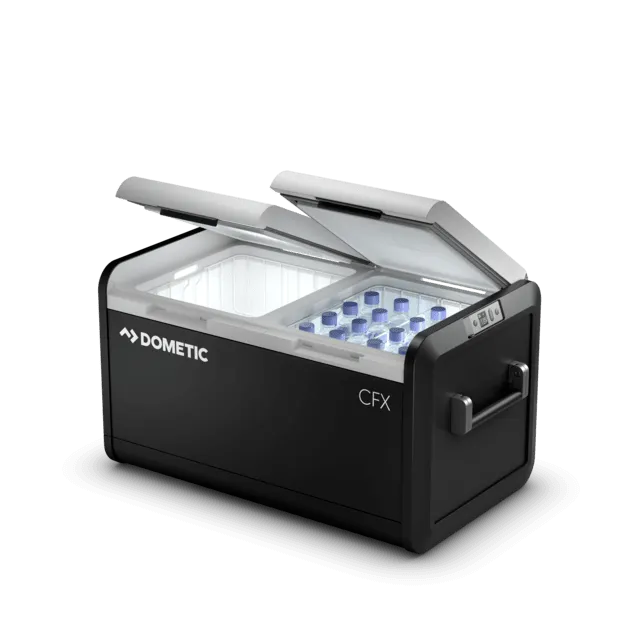

Dual storage compartments with independent temperature control for simultaneous cooling and freezing
Specifications
SKU number
9600024621
Model
CFX375DZ
Scope of delivery
1 cooler, 1 manual, 1 Connection cable for 12/24V connection, 1 Connection cable for 120V connection, removable wire baskets
Single or Dual Zone
Dual
Product Description
Powered cooler, 75 l
Refrigeration technology
Compressor
Warranty
5 Year Limited
Dimensions product depth, ["]
19.49
Dimensions product height, ["]
18.58
Dimensions product width, ["]
35.12
Product width w/out handle, ["]
32.76
Net weight, [lbs]
61.29
Total volume (IEC 62552-3), [l]
75
Power Supply Cable Length AC
6.6 ft
Power Supply Cable Length DC
6.6 ft
Amount of cans (12oz/375ml)
113
Input voltage (AC), [V]
120
Input voltage (DC), [V]
12/24
Rated input current (AC), [A]
0.94A at 120V
Rated input current (DC), [A]
9.6
Input frequency, [Hz]
50/60
Refrigerant, type
R134a
Refrigerant amount, [g]
59
Noise (EN60704-1 & 60704-2-14), [dB(A)]
50
Noise Class EU20192016
D
Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]
1.43
Climate class (EN 62552)
N/T
Temperature Range
-7°F to 50°F
Insulation Thickness
55
Insulation Type
PU (Polyurethane)
Color
Slate / Mist
USB Port
5V, 2A
Connectivity Type
BluetoothWiFi
Basket
Yes
Threaded inserts in base for mounting
M6
Drain plug
Yes
Anti-condensation coil
Yes
Interior light
Yes, LED
Certificates
UL
Cable length supply cable, [m]
2
EAN-13
713814310493
Dimensions parcel depth, ["]
20.67
Dimensions parcel height, ["]
20.47
Dimensions parcel width, ["]
36.61
Parcel weight, [lbs]
74.53
Dometic CFX3 (25, 35, 45, 55, 55IM, 75DZ, 95DZ, 100) - Operating Manual AMER(en-fr-es)
Operating Manual
Dometic CFX3 (25, 35, 45, 55, 55IM, 75DZ, 95DZ, 100) - Short Operating Manual AMER(en-fr-es)
Short Operating Manual
