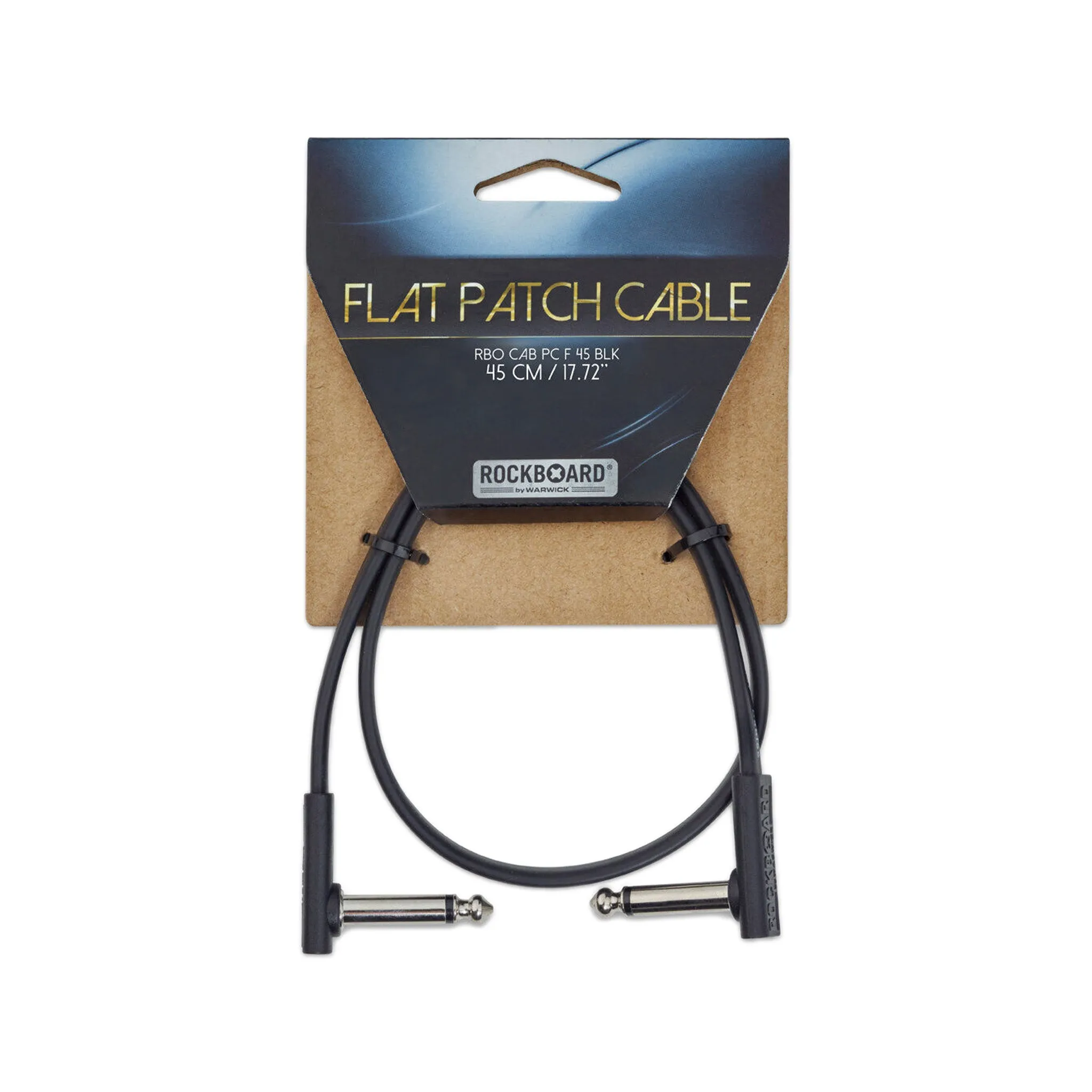

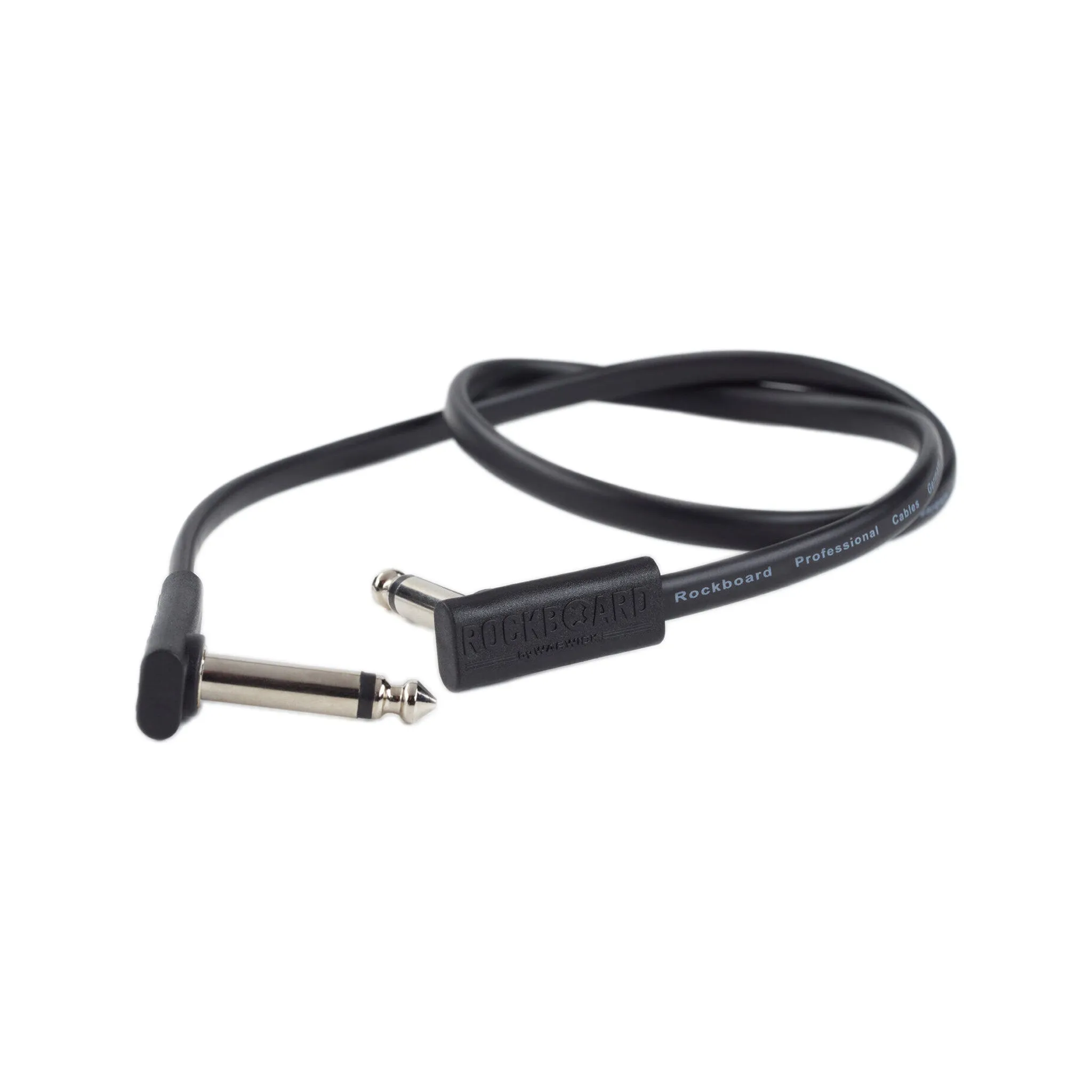

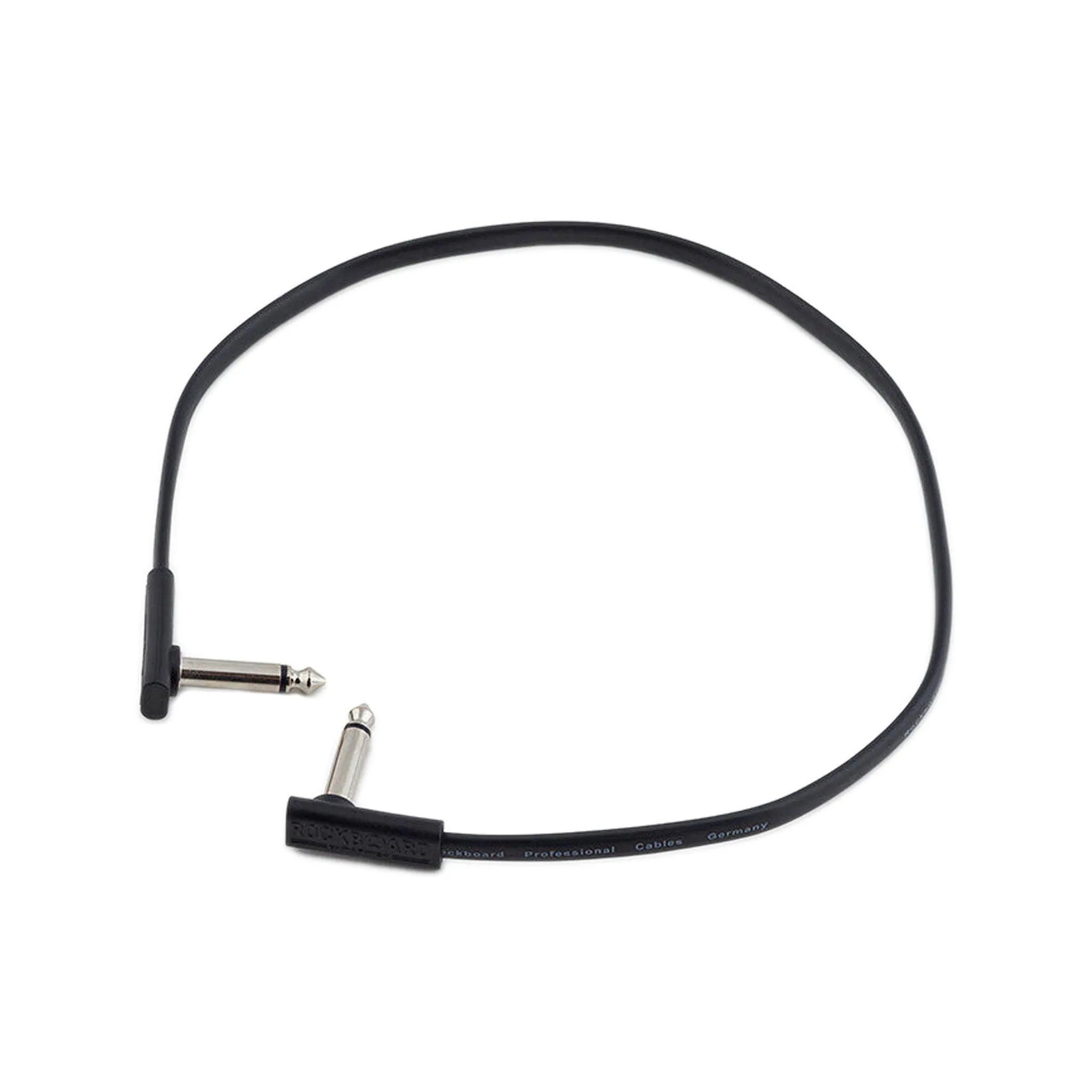

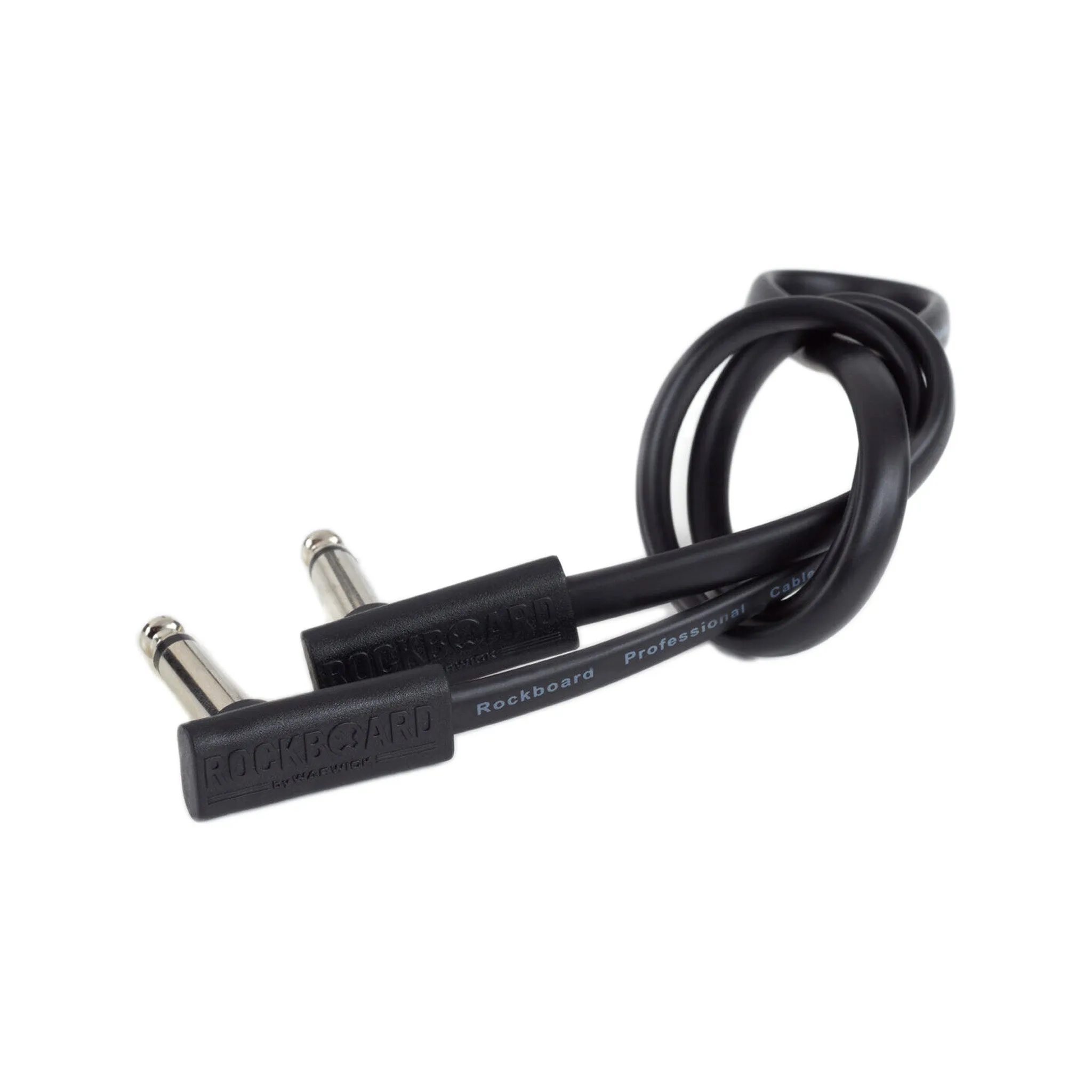

The new RockBoard patch cables were designed to be extra flat and space-saving to make the most of the available space on your pedalboard. They come with slim, angled jack plugs and the flat conductor cables effectively prevent twisting. This ensures accurate and clean wiring of your pedals on the board.
Features:
- Flat patch cables with a rectangular profile

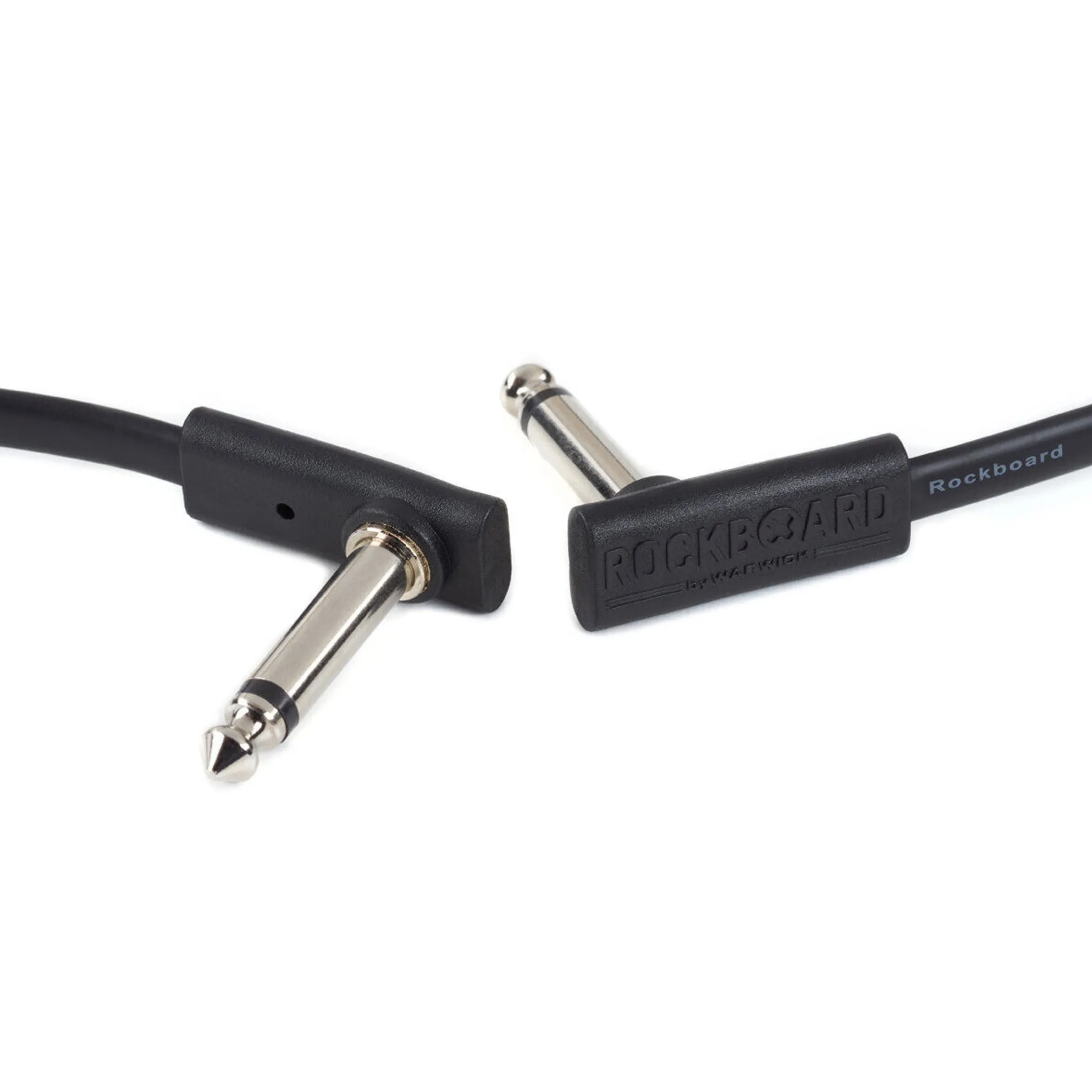

- Compact and super flat angled plugs
- Flexible copper conductor (20 X 0.12 MM / 36 AWG)
- Twisted copper shielding (34 X 0.12 MM / 36 AWG)
- PE (Polyethylene) Signal insulation
- PVC cable mantle
- Capacitance less than 10 PF/Decimeters
- Conductor resistance less than 10 mohm/Decimeters
- Angled 6.3 MM mono audio plugs
- Operating Temperature: -15º C to 70° C / 5° f to 158° f
- Outer Dimensions Cable: 7mm (W) x 3mm (H) Rectangular
- Outer Dimensions Plugs: 12.5mm (W) x 7.5mm (H)
- Length: 45 CM / 17 23/32”
