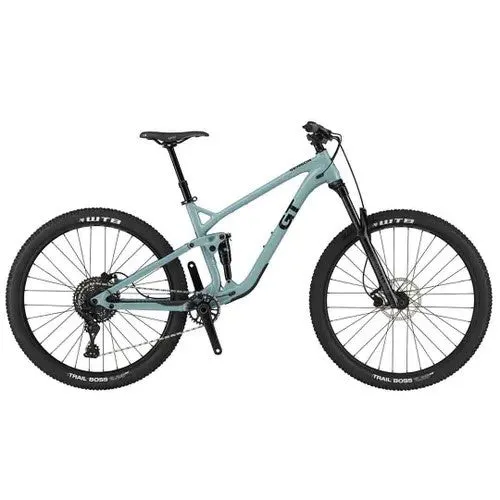

Trail-Tune Geometry
With the goal of maximizing good times on trail; Sensor’s geometry inspires riders to push their fun to a whole new level. It’s 65 degree headtube angle keeps it poised on the descents and the steep 77 degree seattube angle makes climbing a breeze.
LTS Suspension
Linkage Tuned Suspension provides a consistent and efficient suspension platform. The 4-bar system is designed to be a highly tunable suspension platform that maintains ground hugging traction even under heavy braking.
frame Sensor Alloy 29” Frame, 130mm Travel, 12x148mm Thru-Axle, UDH
sizes availableSM, MD, LG, XL
fork RockShox Recon Silver, 140mm, 15x110mm, 42mm Offset
rear shock X-Fusion 02 Pro RL, 185x50mm Trunnion
wheel size 29
rear derailleur MicroSHIFT Advent X M6205
shifters MicroSHIFT Advent X, 10-Speed
rear cogs MicroSHIFT Advent X, 11-48T
chain KMC X10, 10-Speed
crank Prowheel MPX, 32T
bottom bracket Shimano BSA, 73mm
rims WTB STX i25 TCS, 32h, Tubeless Ready
front hub Formula, 15x110mm
rear hub Formula, 12x148mm, HG Freehub Body
front tyre WTB Trail Boss, DNA Compound, 29x2.3"
rear tyre WTB Trail Boss, DNA Compound, 29x2.3"
handlebar GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back
stem GT Alloy, 45mm
grips GT Mushroom
headset FSA No.42
seatpost TranzX Dropper, 31.6mm, (S/M - 150mm, L/XL - 170mm)
saddle WTB Silverado
brakes Tektro M275, 180/180mm Rotors
