Viair 485C Next Generation "Platinum" Dual Pack 12V DC 200 PSI Max with 100% Duty Cycle @ 200 PSI, 10 Gallon Max. Air Tank - FREE SHIPPING in lower 48 States only
Viair's Brand New 485C "Platinum" Dual Pack a true 100% Duty Cycle @ 200 PSI. First 12V DC compressor to offer un-matched performance with a non stop run time of 45 Minutes. Means no need to worry about stopping compressors to fill 5 gallon or 10 gallon tank.
VIAIR's brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a TRUE 200 PSI-rated working pressure pump.
The 485C Dual Performance Pack features two 12V 485C Compressors with newly- developed sleek head design, increased duty cycle and quieter dB levels Platinum dual pack comes equipped with a stainless steel braided leader hoses with an inline Check Valve.
Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

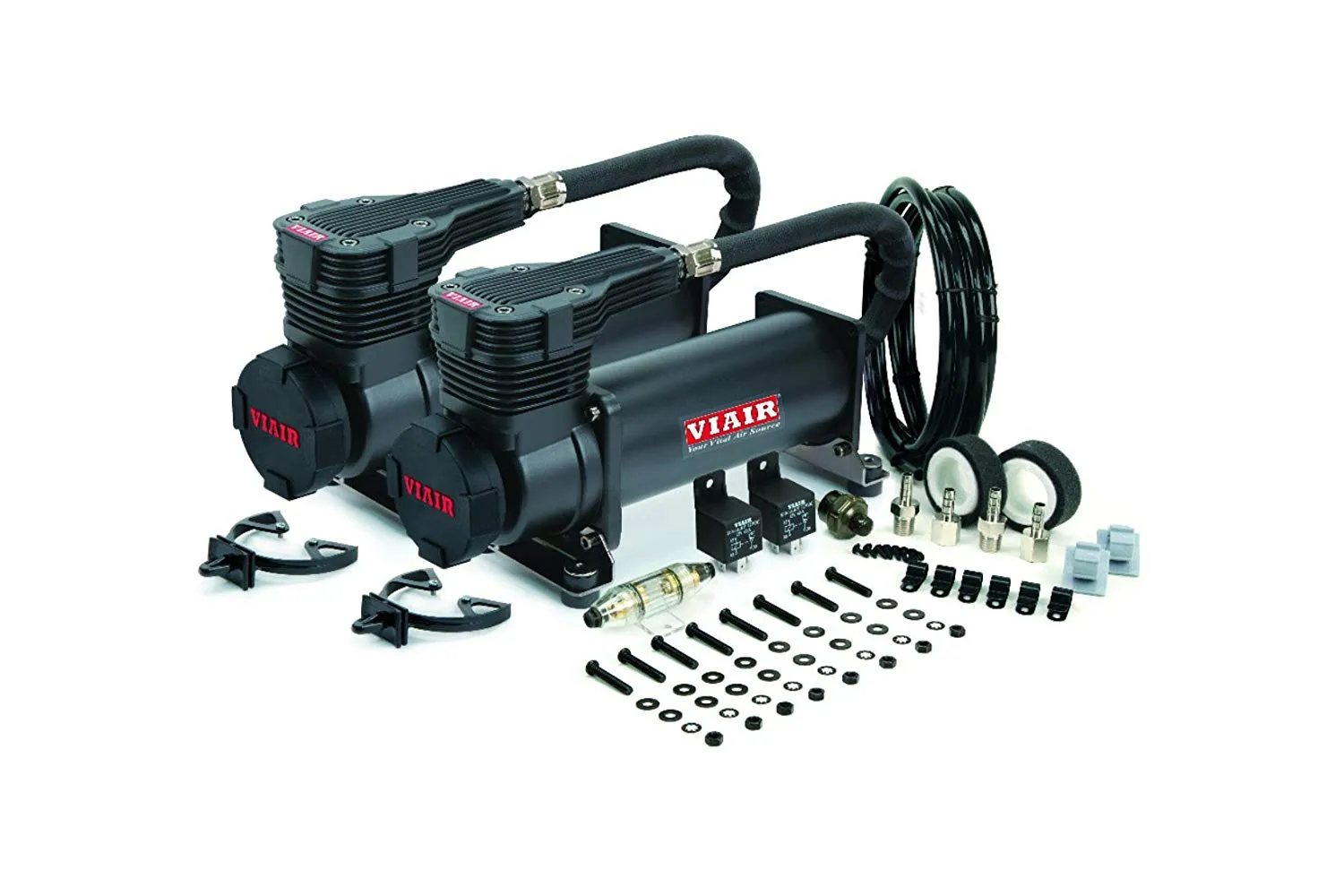

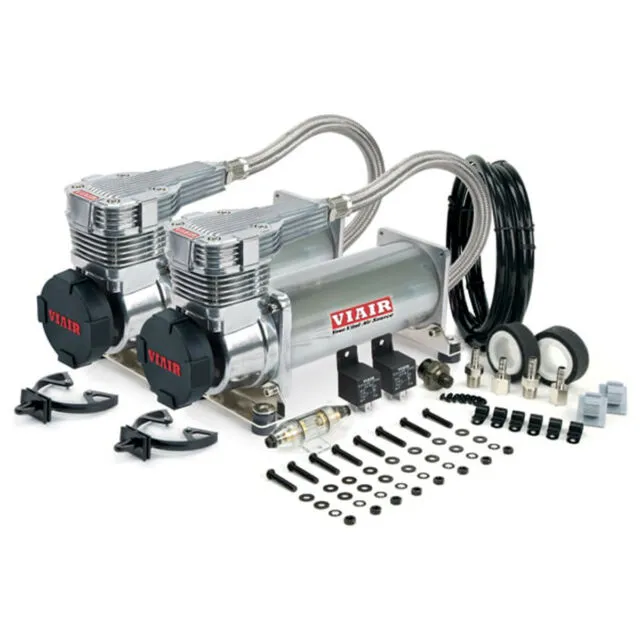

Included Parts:
- (2) 485C (Platinum) Compressors
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
- (2) Heavy Duty 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)
- (2) VIAIR Removable Filter Covers
Specifications:
- 12-Volt DC
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Max. Amp Draw: 46 Amps (23-24 AMP Each)
- Ingress Protection Rating: IP67
- Dimensions: 10.625" L x 4.125" W x 6.4375" H (269.875mm L X 104.755mm W X 163.5125mm (Each Unit)
Fill Rates:
Performance Data:
