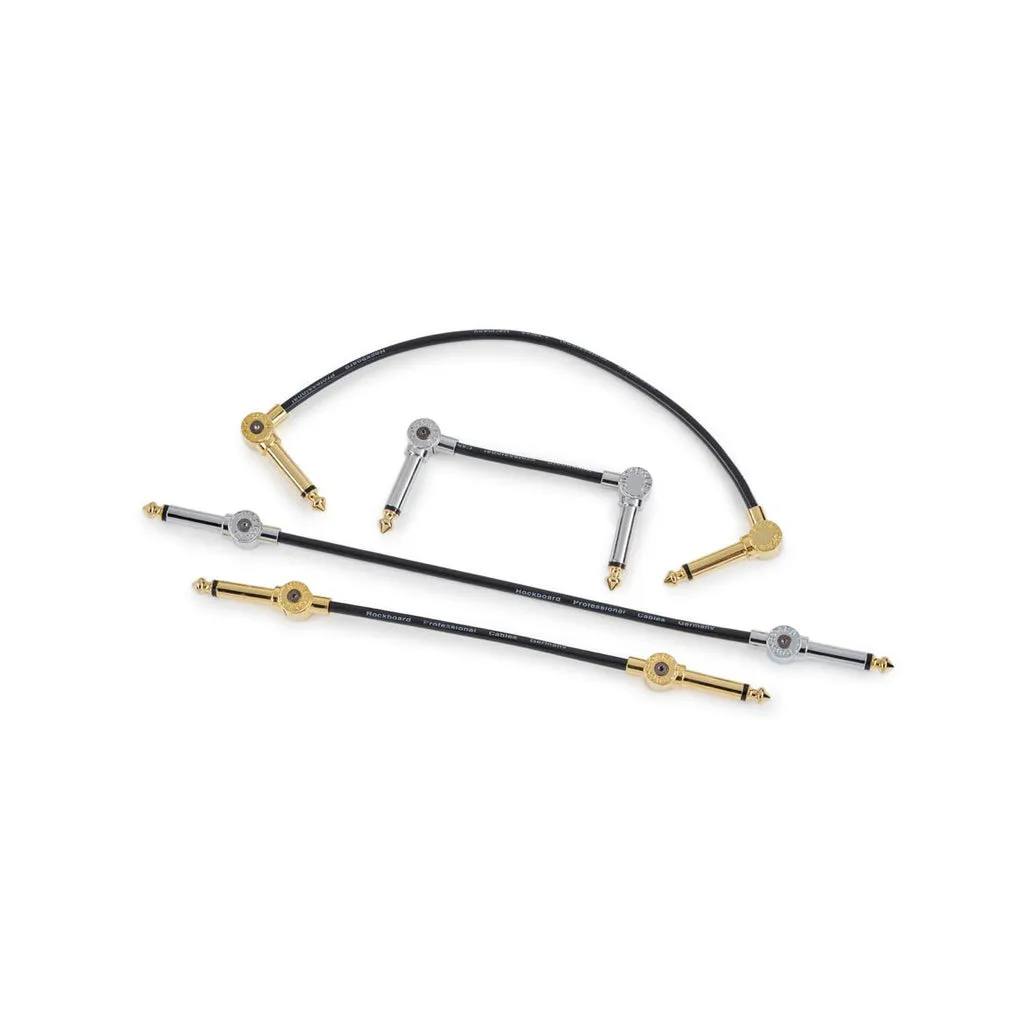

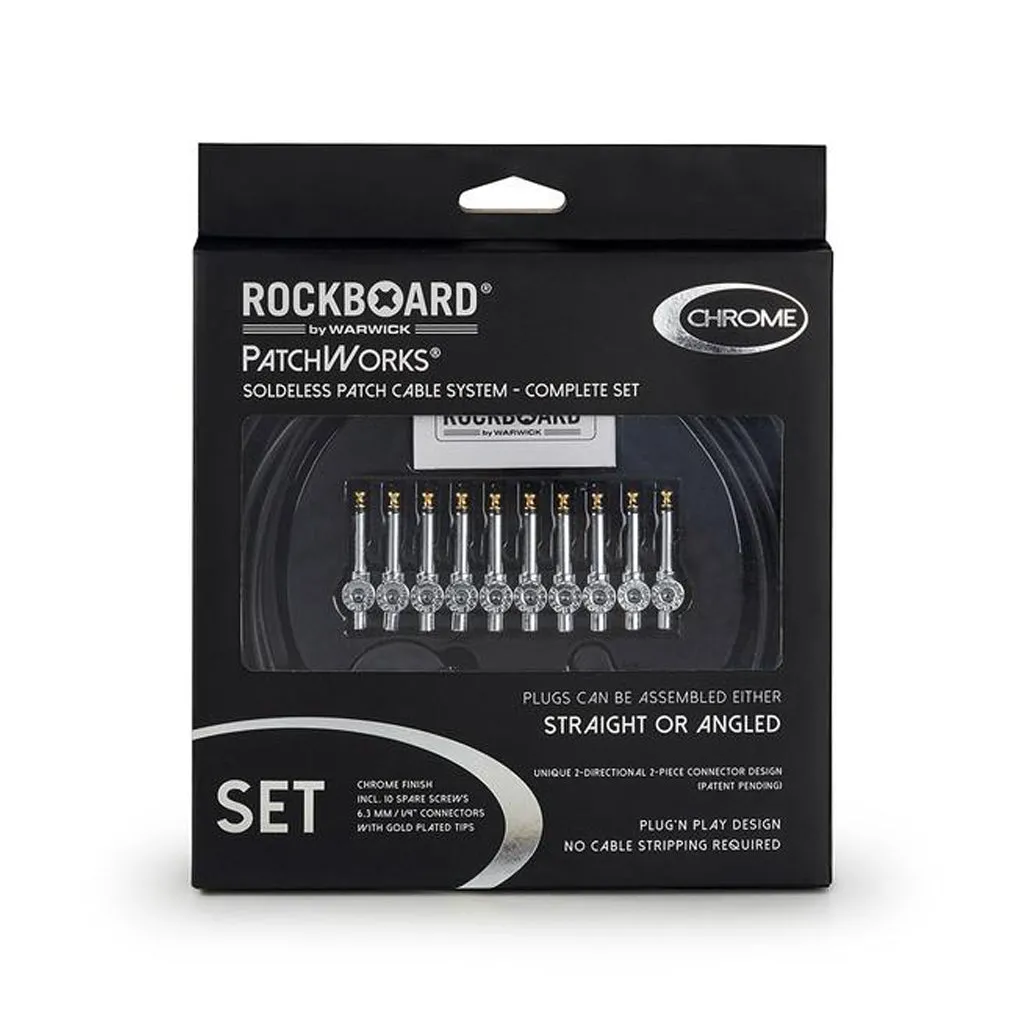

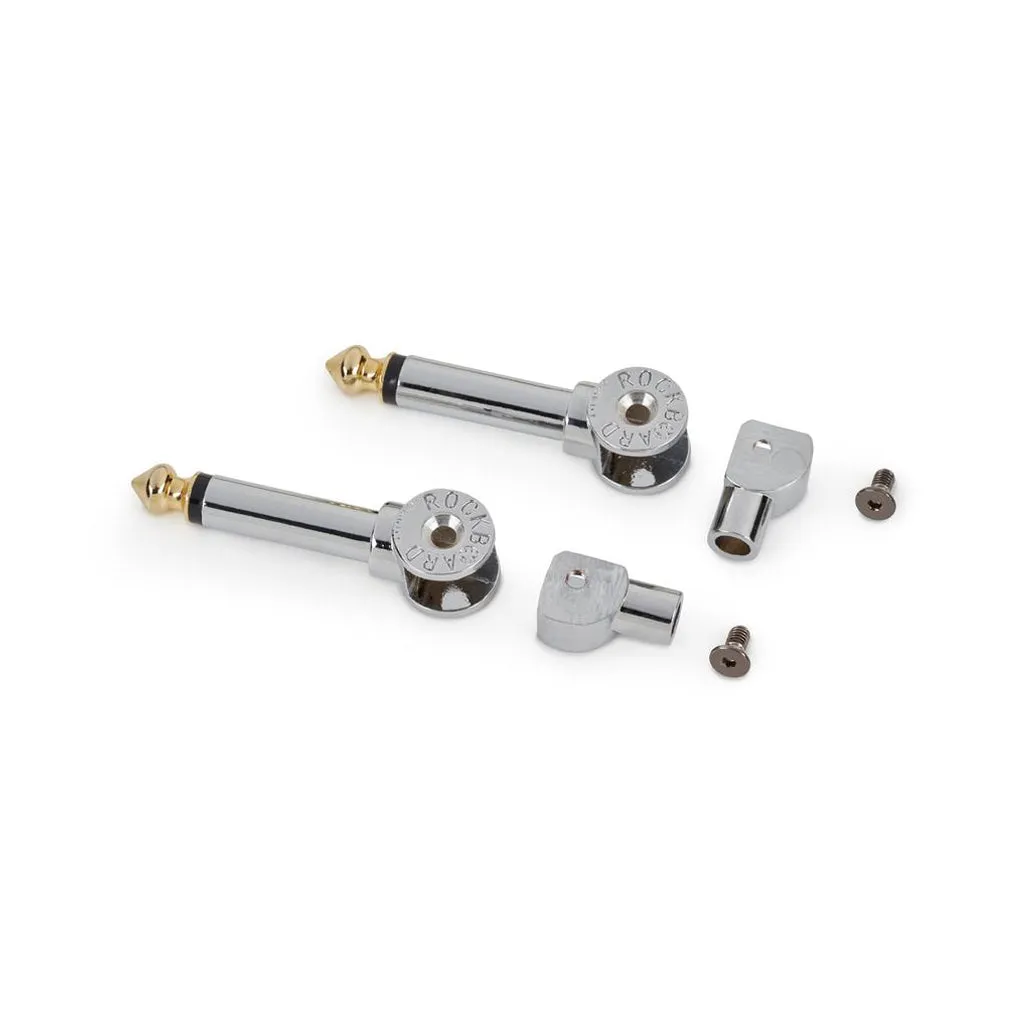

The RockBoard® PatchWorks Solderless Patch Cable System features the first genuine 2-directional 2-piece solderless plug design on the market designed and developed in Germany. They will always offer the plug orientation you need since you can easily flip them from straight to angled or vice-versa. The patented easy-to-use design has a two-piece plug features a slim and compact design for saving pedalboard real estate that can be changed from straight to angled simply by turning one part by 90 degrees. Using professional-grade, high-quality cable and connectors with gold-plated tips, the RockBoard® PatchWorks give you everything you desire for your hi-fi pedalboard. Build your own patch cables, in exactly the length you need them, cutting down on excess cable path and curbing signal loss.
Features:

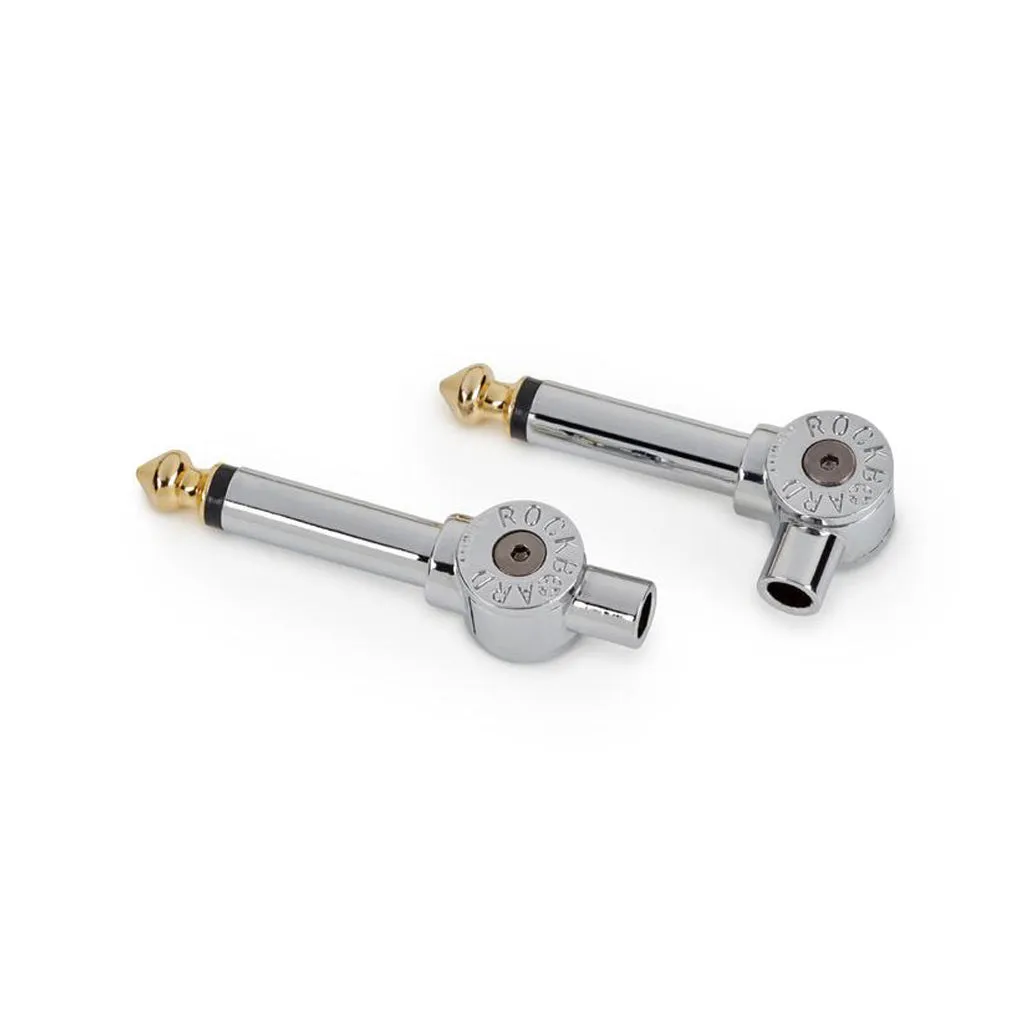

- Plug Dimensions (Straight): 20mm L x 12mm W x 10mm H
- Plug Dimensions (Angled): 15mm L x 13mm W x 10mm H
- Gold plated tips
- Chrome finish

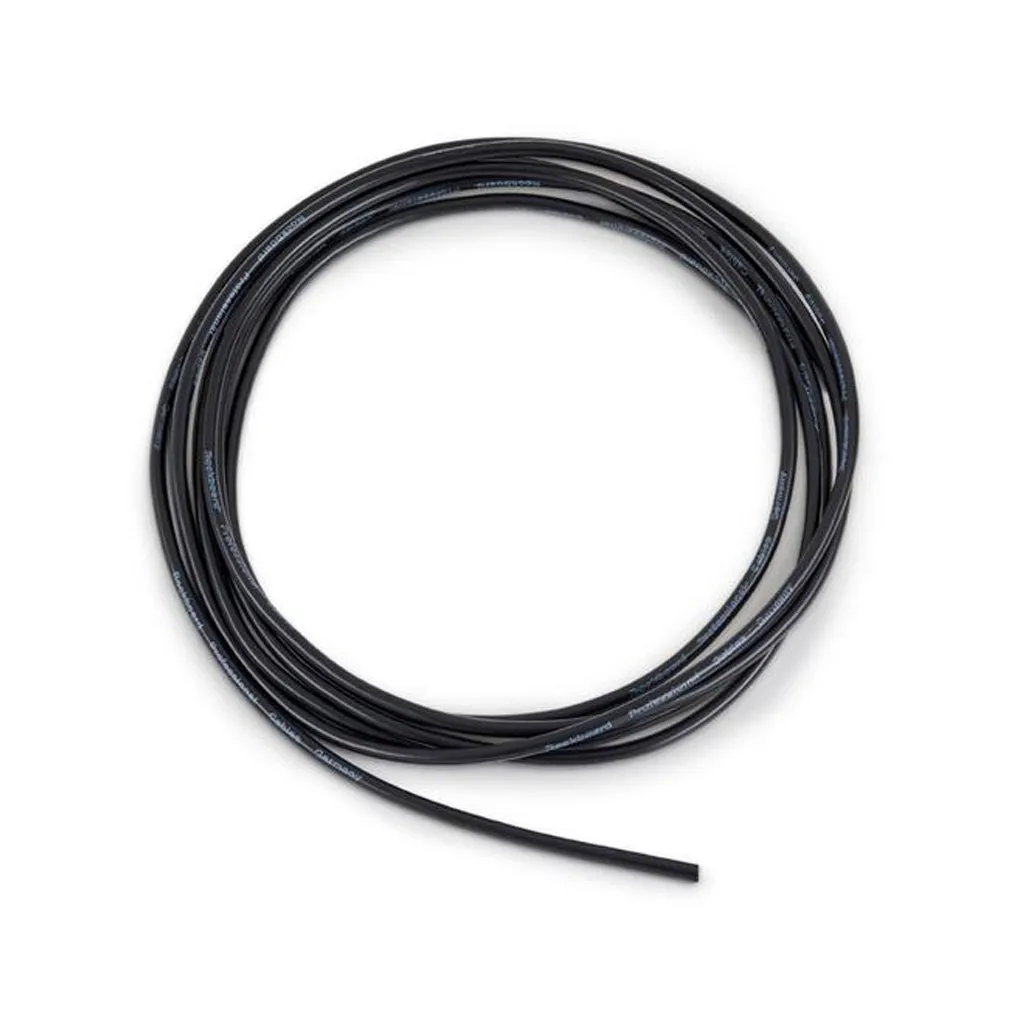

- Low capacitance cable for maximum signal transparency
- Flexible oxygen free copper conductor 7 / 0.16 mm
- Braided tinned copper shielding 6 x 16 / 0.12 mm
- Capacitance cond./shield less than 8 pF/decimeter
- Conductor resistance of 4 mOhm/decimeter
- Operating temperature -15°C to 70°C
- Diameter: 4mm

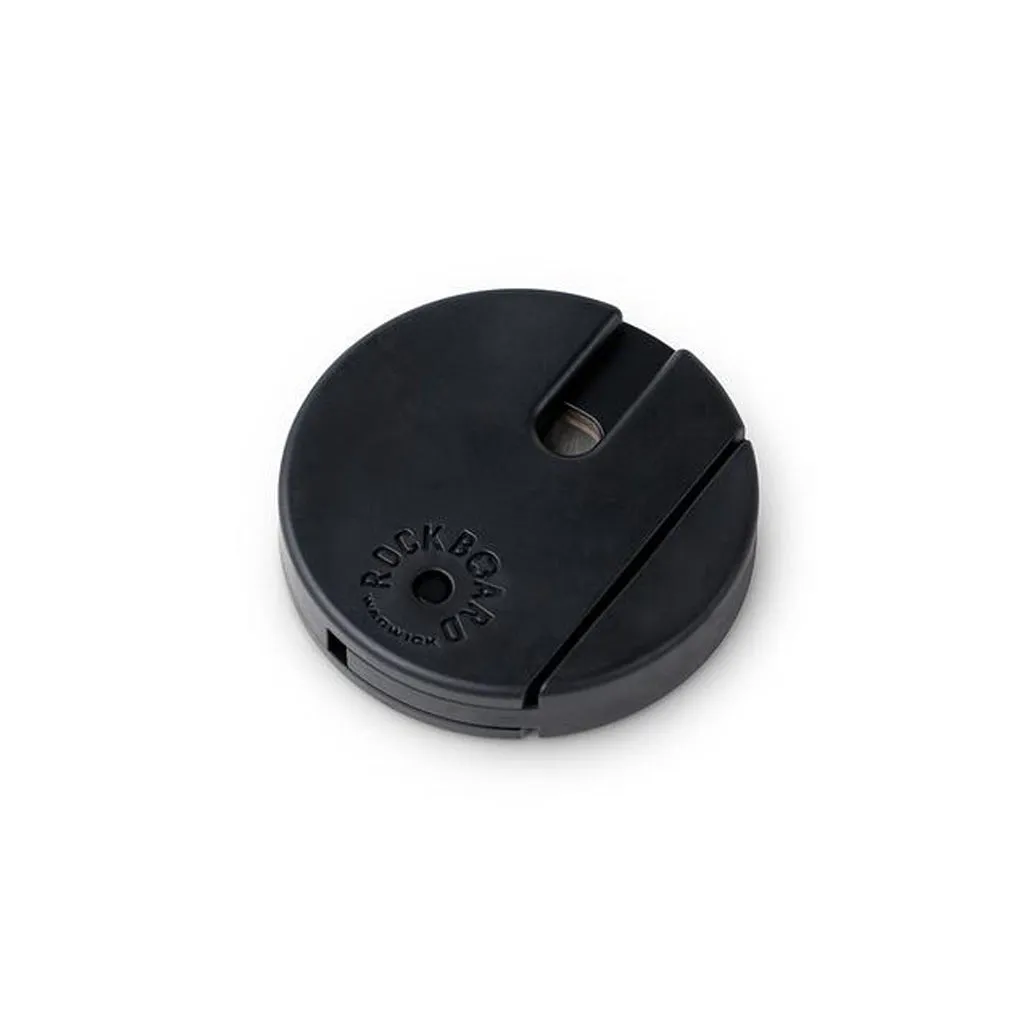

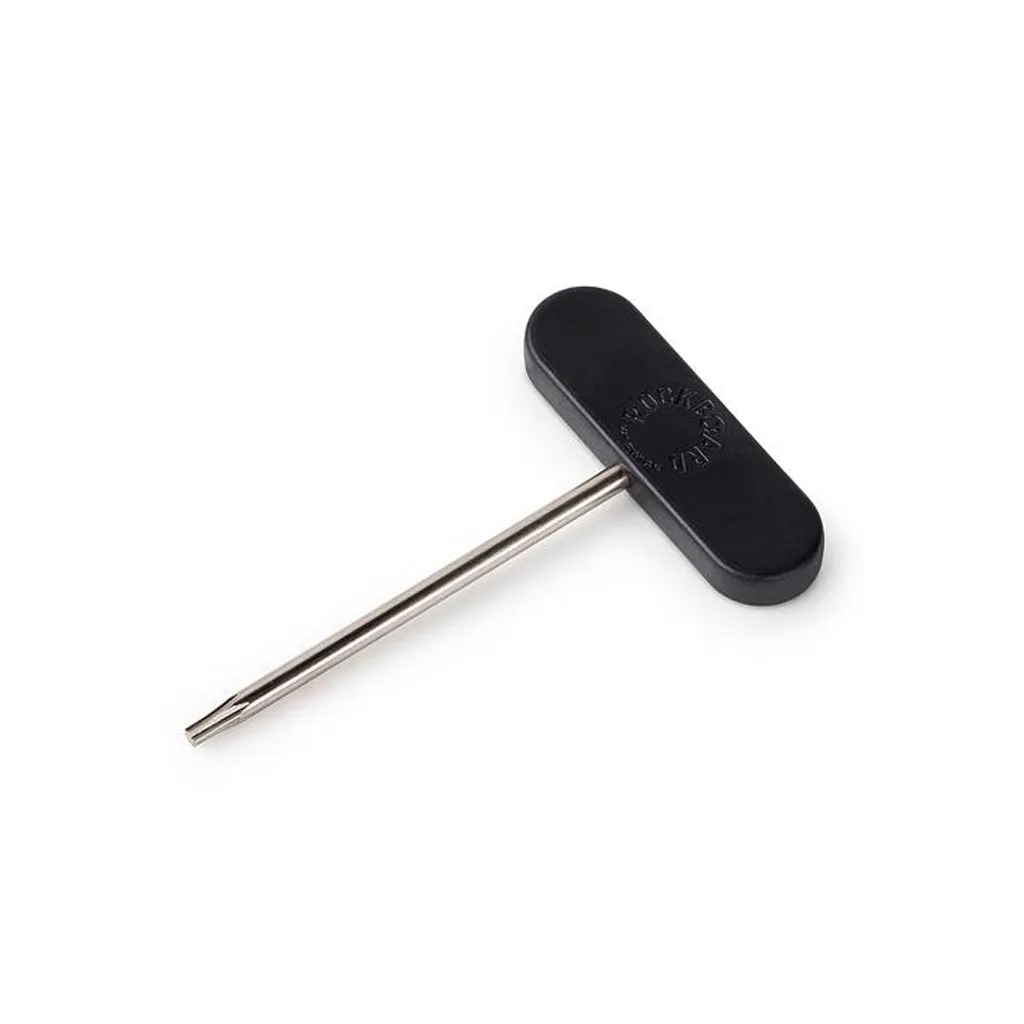

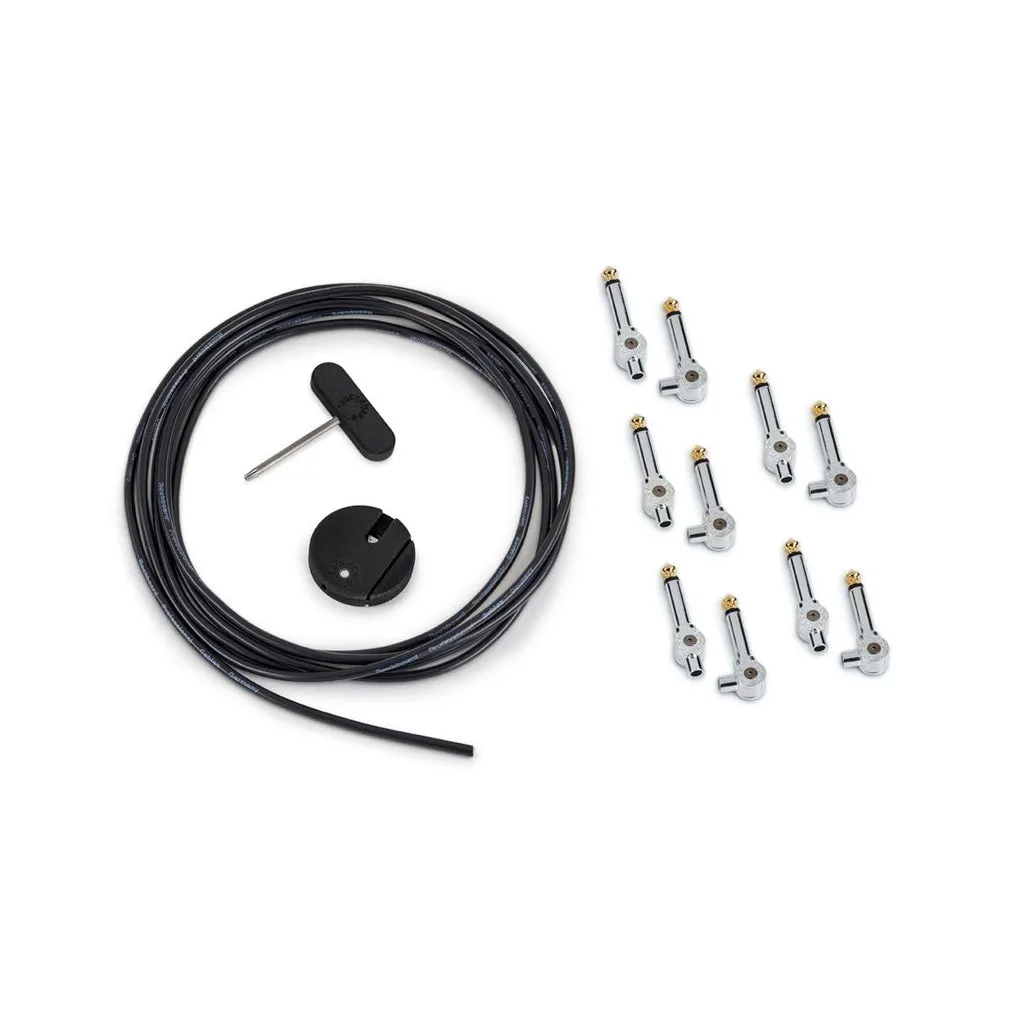

- Includes: TX8 wrench, cable cutter and 10 spare screws
